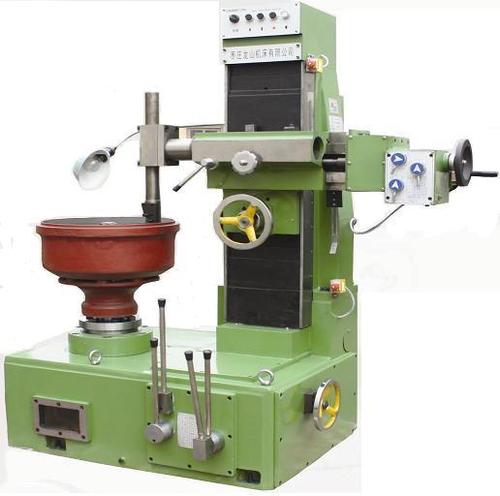

Vertical Brake Drum Boring Machine

Vertical Brake Drum Boring Machine
Vertical Brake Drum Boring Machine
Product Code : TC8365A
Brand Name : Zl
Product Description

In order to manufacture, export and supply the superlative quality Vertical Brake Drum Boring Machine that is used for both vertical and horizontal boring. This machine is manufactured by utilizing outstanding quality components at our well-versed production unit with the help of modern techniques in tune with global market standards. In addition, the offered Vertical Brake Drum Boring Machine can be easily purchased from us at affordable rates within promised time span.

Key Features:

  • Durable in nature
  • Anti-corrosive body
  • Superior finish
  • Less maintenance
  • Energy efficient
  • Sturdy construction

Main Specifications T8358A-S T8362/T8360A/T8360B TC8365A T8370
Range of Brake Drum Diameter  mm 220-580 180-620 200-650 180-700
Max. Brake Disc Diameter  mm     560(with chuck)
Rotating Speed of Workpiece  r/min 37 / 50 36 / 48 25 / 45 / 80 24 / 45 / 80
Feeding rate  mm/r     0.16/0.25/0.40
Working Travel of Slide board  mm 320 450 350 450
Cross feed of tool post  mm/r     0.12
Vertical moving speed of tool post  mm/min     490
Overall Dimensions  (L x W x H)mm 1000 x 820 x 1380 960 x 940 x 1400 1140 x 900 x 1600 1040 x 900 x 1720
Packing Dimensions  (L x W x H)mm 1050 x 900 x 1580 1070 x 1040 x 1610 1520 x880 x1800 1150 x 1000 x 1820
N.W/G.W  kg 560 / 660 600/700 960/1100 1000 / 1150
Motor Power  kw 1.1 1.1 1.5 / 0.55 2.2
