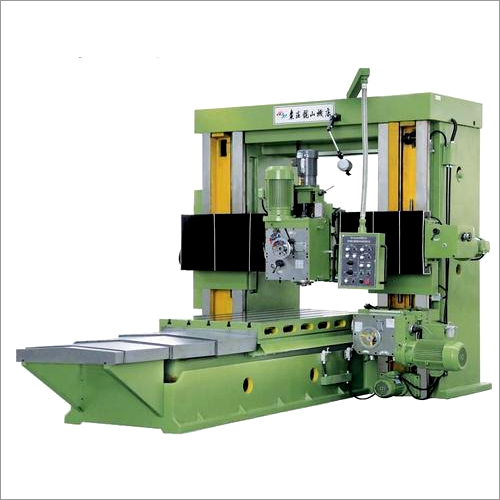

Heavy Duty Plano Milling Machine

Heavy Duty Plano Milling Machine
Heavy Duty Plano Milling Machine
Product Code : X20
Brand Name : Longshan
Product Description

We are manufacturing, exporting and supplying Heavy Duty Plano Milling Machine all over the globe. Widely appreciated among the customers for its high performance, the offered machine is used for providing shapes to solid material. The offered machine is manufactured as per the set standards of quality with the help of ultra-modern techniques at our fully-maintained workshop by making use of prime quality basic materials. In addition, this Heavy Duty Plano Milling Machine is available with us at a negotiable price range.

Key Features:

  • Rigid construction
  • Outstanding performance
  • Noise less operation
  • Low power consumption
  • Rectangular guide-ways
  • Rigid machine bed
  • Beam/column ensure stability of the machine in strong cutting.
  • Milling head can move vertically/horizontally or swivel ±30°.
Used in:
  • Machining
  • Molding
  • Especially the machining of plane/end

Specifications:

               Model

             Parameter

X20 Plano Miller/Plano Milling Machine/Gantry Milling Machine

X2014-20

X2014-30

X2014-40

X2014-60

X2016-30

X2016-40

X2016-60

X2020-40

X2020-60

X2025-40

X2025-60

Table size

mm

1000 x 2000

1000 x 3000

1000 x 4000

1000 x 6000

1200 x 3000

1200 x 4000

1200 x 6000

1600 x 4000

1600 x 6000

2000 x 4000

2000 x 6000

Table feeding speed

mm/min

0-260

0-390

Table rapid feed speed

mm/min

2500

Power of table motor

kw

4

5.5

7.5

5.5

7.5

Max. table load

kg

4000

5000

6000

7000

7000

8000

10000

9000

12000

10000

14000

Max. allowable work-piece dimensions

Length mm

2000

3000

4000

6000

3000

4000

6000

4000

6000

4000

6000

Width mm

1400

1600

2000

2500

Height mm

800

1200

1500

Dis. between columns

mm

1450

1620

2020

2520

Spindle motor power

kw

7.5

11

Spindle taper

IS050

Spindle speed

r/min

100-685(6 Steps)

66-660(Steps)

Milling head swivel angle

± 30°

Dis. Between vertical spindle nose & table surface

mm

0-800

0-1200

0-1500

Dis. Between horizontal spindle nose & table surface mm

100

Recommended milling disc diameter  mm

160

200

External dimensions

Length mm

6080

8080

10080

14080

8080

10080

14080

10080

14080

10080

14080

Width mm

2630

2630

2630

2630

3230

3230

3230

3630

3630

4300

4300

Height mm

2800

2800

2800

2800

3000

3000

3000

3500

3500

3500

3500
