Guideway Grinding Machine

Guideway Grinding Machine
Guideway Grinding Machine
Product Code : MK
Brand Name : Longshan
Product Description

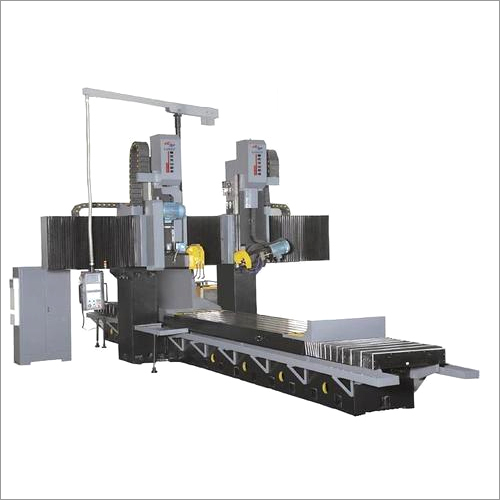

As we are a well known manufacturer, exporter and supplier, we offering a quality assured Guideway Grinding Machine to our customers. This machine is used for the precise finishing web precision products. Our offered machine is made out of panel or table, on which the guideway is fixed. The grinding head over this, grinds the he workpiece into the desirable dimensions on the guideway. Moreover, this Guideway Grinding Machine is provided to our customers in various specifications at most reasonable prices.

Key Features:
  • Composed of hydraulic transmission system box shape frame etc.
  • Horizontal grinding head is mainly for grinding level plane, vertical grinding head is mainly for side plane(grinding incline of V type guide-way & swallow-tail slot at any angle is possible).
  • Combined with PLC, servo motor-reducer-ball screw drive system, hydraulic transmission system and box shape frame.
  • Horizontal grinding head is primarily for the grinding level plane (Grinding incline 90° of V-type guideway is manageable), vertical grinding head for side plane (hydraulic locking & electrical angle adjustment), grinding slope of V type guideway and swallow-tail slot at all angles is possible.
  • Gantry structure; strong, close & box structure combined with double column, beam & bed.
  • Rectangular staged guideway with high rigidness & good mechanical property.
  • Roller bearings for vertical grinding head and state-patented spindle for horizontal grinding head.
  • Step-less, stable and low noise table movement, self-reliant hydraulic station with cooling unit, and long range control.
  • It comes with auto lubrication, and it stops as well as alarms automatically if oil is not enough

NO.

Specifications

MK1630

MK1640

MK2040

MK2060

MK2080

MK2860

MK2880

1

Max. grinding width/length   mm

1600/3000

1600/4000

2000/4000

2000/6000

2000/8000

2800/6000

2800/8000

2

Max. grinding height(H./V.)  mm

800/750

800/750

1200/1050

1200/1050

1200/1050

1500/1200

1500/1200

3

   Max. work-piece height  mm

800

800

1200

1200

1200

1500

1500

4

Max. work-piece weight  kg

5000

6000

8000

10000

12000

25000

30000

5

Distance between columns  mm

1700

1700

2100

2100

2100

3000

3000

7

T-slot quantity/width

7/28 mm

7/28 mm

9/28 mm

9/28 mm

9/28 mm

11/28 mm

11/28 mm

8

Max. table travel  mm

3200

4200

4200

6200

8200

8200

8200

9

Table moving speed  m/min

5-18

5-18

5-18

5-18

5-18

5-18

5-18

10

Spindle speed (H./V.)  rpm

1300/1450

1300/1450

1300/1450

1300/1450

1300/1450

868/970

868/970

11

Sand-wheel size (O./W./I.)  mm

H.

500/75/ 203

500/75/203

500/75/ 203

500/75/ 203

 500/75/203

600/100/ 203

 600/100/ 203

V.

405/62/ 127

405/62/ 127

 405/62/ 127

405/62/127

405/62/127

500/75/ 203

 500/75/203

12

Main Motor power (H./V.)  Kw

11/7.5

11/7.5

11/7.5

11/7.5

11/7.5

22/11

22/11

13

Dimensions (L./W./H.)  mm

12000/6000/6000

16000/6000/6000

16000/6500/6500

21000/6500/6500

25000/6500/6500

21000/9000/6600

25000/9000/6600
